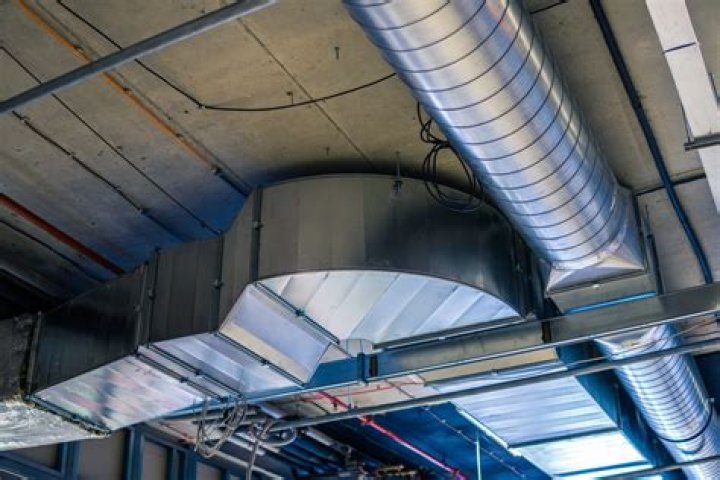

What is medium pressure ductwork?

Medium Pressure: The term medium pressure applies to systems with fan static pressures between 3 to 6 inches WC. Generally, duct velocities are less than or equal to 2,500 fpm.

.

People also ask, what gauge is standard ductwork?

The thinnest acceptable sheet metal for ductwork used in a single dwelling is 28 gage or 0.013 and 0.018 inches for galvanized and aluminum, respectively. This measurement is for around duct smaller than 12 inches in diameter and a rectangular section no bigger than 8 inches.

Similarly, what is duct pressure? Static pressure is one of the most important factors in HVAC design. Simply put, static pressure refers to the resistance to airflow in a heating and cooling system's components and duct work. The push of the air must be greater than the resistance to the flow or no air will circulate through the ducts.

Hereof, what is considered high pressure ductwork?

Duct systems are often divided into three pressure classifications: High Pressure Systems - where fan static pressures are in the range 6 to 10 in WC (1500 - 2500 Pa) and duct velocities in general less than 4000 fpm (20 m/s)

What is considered medium pressure ductwork?

A. Medium and high-pressure ductwork is hereby defined as ductwork subject to operating pressures in excess of 2” w.g., positive or negative. Low pressure ductwork is hereby defined as ductwork subjected to velocities of 2500 fpm or less, and operating pressure of 2" w.g. or less, positive or negative.

Related Question Answers

Which is thicker 26 gauge or 30 gauge?

0157 of an inch; 26 gauge steel will have an average thickness of . 0217 of an inch, with a minimum of . 0187 of an inch, and so on. Thus, a 30 gauge steel panel will be thinner and weaker than its 24 gauge counterpart.

How many types of ducts are there?

Within these three classifications of ductwork, there are two major types of ducts – flexible and sheet metal. Sheet metal ducts come in both rectangular and cylindrical shapes, and are generally more reliable and durable than flexible ducts.

What type of metal is used for ductwork?

Galvanized mild steel is the standard and most common material used in fabricating ductwork because the zinc coating of this metal prevents rusting and avoids cost of painting.

Is ductwork galvanized?

Most ductwork manufactured of galvanized metal is hot-dip galvanized, a process of coating steel with a thin zinc layer, by passing the steel through a molten bath of zinc at a temperature of around 860 °F (460 °C).

Is 655 a standard for ducting?

This standard covers materials and constructional requirements of air ducts used for air conditioning and ventilation system (including gas exhausting system). For the purpose of this standard, the following principal definitions shall apply.

What gauge is smoke pipe?

Standard Single. Single-wall stove pipe is used on standard wood stove installations. It should be at least 24-gauge sheet metal or thicker -- the lower the gauge, the thicker the metal. Typical code requires that single-wall stove pipe maintain at least an 18-inch clearance from any combustible material.

What does Smacna stand for?

SMACNA stands for Sheet Metal and Air Conditioning Contractors National Association. Suggest new definition.

What is the maximum operating pressure in an air duct system?

Usually the static pressure is limited to a maximum of 7 inches WC, and duct velocities are limited to 4,000 fpm. Systems requiring pressures more than 7 inches WC are normally unwarranted and could result in very high operating costs.

What does WG mean in HVAC?

inches water gauge

What is low pressure duct?

Low pressure ductwork is hereby defined as ductwork subjected to velocities of 2500 fpm or less, and operating pressure of 2" w.g. or less, positive or negative.

What is a good static pressure?

Good blood pressure is 120 over 80 by most standards. High blood pressure isn't good and usually indicates excessive restrictions in your arteries. Likewise total external static pressure that is higher than the rated total external static pressure may indicate excessive restrictions in the air distribution system.

How do I calculate static pressure?

There are two common ways to measure this pressure. The first and most common is to use the force exerted by the fluid divided by unit area. Another way to calculate static pressure is to determine the fluid's pressure head, or how far the fluid will rise when it's no longer constrained.

How do you calculate duct size for a room?

How to Determine Duct Size Per Room

1. Look at the plate on your furnace to figure out how many BTUs it produces.
2. Multiply that number by the amount of cubic feet of airflow per minute (CFM) your type of furnace produces.
3. Divide your number by 10.
4. Calculate the size of your ducts vents by multiplying the length by the width.
