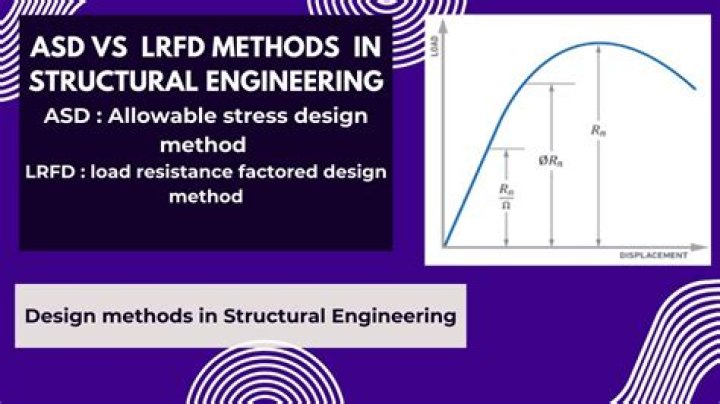

What is LRFD design method?

Load and Resistance Factor Design (LRFD), a Limit States Design implementation, and. Allowable Strength Design (ASD), a method where the nominal strength is divided by a safety factor to determine the allowable strength.

What are the different types of limit state method?

There are two main limit states: (i) limit state of collapse and (ii) limit state of serviceability (see Fig. 2.3. 1). (i) Limit state of collapse deals with the strength and stability of structures subjected to the maximum design loads out of the possible combinations of several types of loads.

What is difference between LSM and WSM?

The cardinal difference between Working state method (WSM) and Limit State method (LSM) is: WSM is an elastic design method whereas LSM is a plastic design method. Hence the “moment-rotation” capacity of beam, for example, is utilized making the design more economical.

What is ultimate load method?

In this method, the structural element is proportioned to withstand the Ultimate Load which is obtained by enhancing the service load by some factor referred to as load factor for giving a desired margin of safety.

Is ASD or LRFD better?

Comparing both on the same building design, the general consensus is that LRFD will result in stronger structures for more highly dynamic loads and ASD will result in stronger structures for less variable (more predicable) loads.

What is LRFD load combinations?

For LRFD, the load combinations are as follows: 1.1.4D. 2.1.2 D+1.6L+0.5(Lr or S or R) 3.1.2D+1.6(Lr or S or R)+(L or 0.5W) 4.1.2D+1.0W+L+0.5(Lr or S or R)

What are the two major categories of limit states?

Plastic Behavior of Structures For steel structures, two major limit states need to be considered for general design: the ultimate limit state and the serviceability limit state.

What is limit state method in RCC?

Limit State Method of Rcc Design The Limit State Method is defined as a method which limits the structural use of the material of the structure up to a certain load at which acceptable limit of safety and serviceability are applied so that the failure of structure does not occur.

Why do we prefer LSM over WSM?

1) Serviceability check in case of LSM is required because after the elastic region strain is higher, which results in more deformation, hence a check is necessary. 2) LSM is strain based method whereas WSM is stress based method. 3) LSM is non-deterministic method whereas WSM is deterministic approach.

Is 456 a working stress method?

As mentioned earlier, the working stress method is based on elastic theory, where the following assumptions are made, as specified in cl. B-1.3 of IS 456.

What is ultimate load in RCC?

With respect to aircraft structure and design, ultimate load is the amount of load applied to a component beyond which the component will fail. The chance that it will occur is, however, not zero, and, if it were to occur, then the relevant structure in the aircraft would stand a large chance of fracture.

What is ultimate load method in RCC?

2. Ultimate load method: This method is sometimes also referred to as the Load factor method. In this method, the stress condition at the site of the impending collapse of the structure is analyzed, and the nonlinear stress-strain curves of concrete and steel are made use of.
