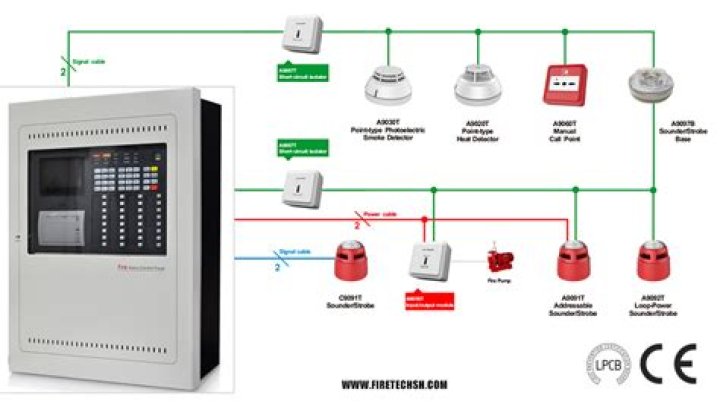

Last but not the least, input module is one ofthe input devices of a fire alarm system. Inputmodules are used for integration of fire alarm systemsand other electrical or mechanical systems in the building.For example flow switches of sprinkler systems or eathquakesensors can be monitored by input modules..
Hereof, what is module in fire alarm system?
MMF-300(A) Series and MDF-300Modules Monitor modules are used to supervise a circuitof dry-contact input devices, such as conventional heatdetectors and pull stations, or monitor and power a circuitof two-wire smoke detectors.
Also Know, what is the function of control module in fire alarm system? A control module is the output side. It activateswarning devices like a bell or horn strobe. It can also activaterelays connected to automatic door closers, elevatorcontrols, fire suppression systems,smoke ejectors, and the like.
Just so, what is isolator module in fire alarm system?
A fault isolation module, i.e. a circuit devicethat monitors the data communication line between installedisolators, provides protection.
How does a conventional fire alarm system work?
Firedetection devices are individually connected to conventionalfire alarm panels using wires. If a connected device detectssigns of a fire (such as smoke or heat), it will senda signal to the control panel and set off thealarm.
Related Question Answers
What do you mean by module?
A module is a software component or part of aprogram that contains one or more routines. One or moreindependently developed modules make up a program. Anenterprise-level software application may contain several differentmodules, and each module serves unique and separatebusiness operations.What are the different types of fire alarm systems?
Types of Fire Alarm Systems: Conventional vs.Addressable The two main types of fire alarm systems areconventional and addressable. The various components thatmake up these systems are either automatic ormanual.What is monitor module in fire alarm system?
You mean on a fire alarm system. A monitormodule is an addressable device used on an addressablesystem. It's used to monitor non-addressable devices,such as a sprinkler flow switch, sprinkler tamper/supervisory on ashutoff valve, or a loop of standard heatdetectors.What are the main components of a fire alarm system?
Here are the components of a fire alarm system. - Alarm Initiating Devices. These come in both manual andautomatic forms.
- Alarm Notification Devices.
- Fire Alarm Control Panel.
- Backup Power Supply.
- Remote Controls & Display Panels.
- Contact Advanced Fire Protection.
What is a signaling line circuit?
A Signaling Line Circuit (SLC) carriesinformation in the form of data to and from the field devices forthe fire alarm system, and also carries power from the controlpanel to the devices. The SLC (Signaling Line Circuit) isanother way of saying Data and Power Circuit.What is a fire relay?
Fire Alarm Relays can come in many forms,including wireless and detector bases. Without getting tootechnical, a fire alarm relay is essentially anelectric switch – one that takes an amount of power anddistributes it to allow other devices to be powered in certaincircumstances.What is Zone in fire alarm system?
The zones shown on a fire alarm panel arelinked to these fire zones. Building zones aren'tdetermined by where the wires are run for the fire alarmsystem; building zones are determined by the building'sfire-control/fire-fighting separations and by thebuilding's smoke-control separations.What is manual call point?
Manual alarm call points are designed forthe purpose of raising an alarm manually once verification of afire or emergency condition exists, by operating the push button orbreak glass the alarm signal can be raised.What is a loop in a fire alarm system?
Fire Alarm Loop In a fire alarm system, a loop is a pairof wires. It carries power and signals between the circuit boardsinside the control panel and the off-panel devices inthe field.How does the fire alarm system works?
A fire alarm system consists of firesensors, such as smoke and heat detectors, locatedthroughout the building, connected to a main alarm panel byspecial cables. The panel will indicate the location of thefire to the persons manning it so that they can coordinatethe evacuation process.What is fault isolator in fire alarm system?
Fault Isolator Modules should be spaced betweengroups of addressable devices (maximum 25, see notes on page 1) ina loop to protect the rest of the loop. If a shortoccurs between any two isolators, then both isolatorsimmedi- ately switch to an open circuit state and isolate thegroups of sensors between them.What is a response indicator?
Response indicators are connected to automaticfire detectors in order to indicate quickly the source of an alarmsignal from detectors which are not easily accessible or visible.The response indicators contain an indicator lampunit with one resp. They light up as soon as the connected firedetector gives an alarm.How does a short circuit isolator work?
Its purpose is to isolate the line (loop) segment when ashort circuit is detected. Thus the fire detectors, whichare not located in the short circuited segment,continue operation. When the short circuit is eliminated theisolator automatically enters inactive state.What is a supervisory signal on a fire alarm?
An alarm meant a warning of fire danger. Asupervisory signal was used to indicate that some otherprotection system, monitored by the fire alarm system, wasoff-normal. Supervisory signals were used to indicate whensprinkler valves were closed or when a suppression system releasingpanel was disabled.What are relay modules?
The relay module is a separate hardware deviceused for remote device switching. With it you can remotely controldevices over a network or the Internet. Devices can be remotelypowered on or off with commands coming from ClockWatch Enterprisedelivered over a local or wide area network.What is fire alarm cause and effect?
Related to addressable fire alarm systems,cause and effect refers to the programming of a firealarm system, where the output or result of an input activationcan be changed according to the requirements of the applicatione.g. double-knock.How many types of fire alarm panels are there?
Today, there are two types of fire panels:Conventional fire alarm panel; Addressable fire alarmpanel.Which cable used for fire alarm system?
1) FPL which is a power-limited fire alarm risercable is usually the least expensive because it is the mostbasic type of fire alarm cable and is also recognized by theNEC (National Electric Code). FPLR cables are suitable foruse in a vertical run through a shaft or from floor to floorwithin a building.What is IDNet simplex?
Individual addressable modules (IAMs) receive both powerand communications from a two-wire MAPNET II or IDNetcircuit. IDNet Relay IAMs allow fire alarm control panels tocontrol a remotely located Form “C” contact usingIDNet addressable communications for both data and modulepower.
