What is a vSAN fault domain?
By Sebastian Wright

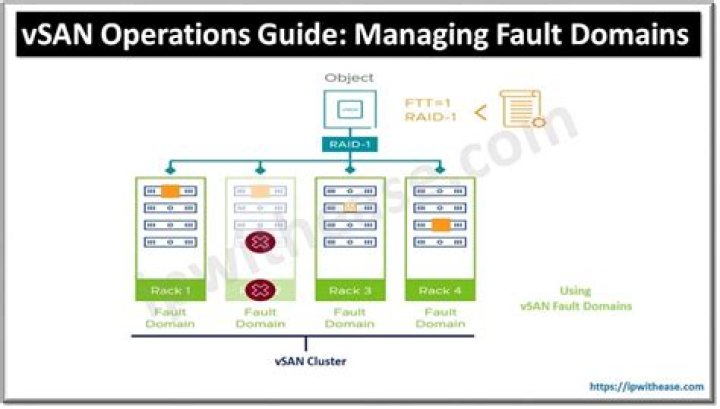

In IT, a fault domain usually refers to a group of servers, storage, and/or networking components that would be impacted collectively by an outage. A common example of this is a server rack. That server rack is considered a fault domain. Each host in a vSAN cluster is an implicit fault domain.
.
Also, what is fault domain?
A fault domain is a set of hardware components that share a single point of failure. To be fault tolerant to a certain level, you need multiple fault domains at that level. For example, to be rack fault tolerant, your servers and your data must be distributed across multiple racks.
One may also ask, what is vSAN stretched cluster? Stretched clusters extend the vSAN cluster from a single data site to two sites for a higher level of availability and intersite load balancing. In a stretched cluster configuration, both data sites are active sites. If either site fails, vSAN uses the storage on the other site.
Beside above, what is FTT in vSAN?
Failures to Tolerate (FTT) vSphere. vSAN. FTT implies host failures to tolerate if fault domain is not mentioned.
How many default fault domains are allowed?
Fault domains and update domains. When you place your VMs in an Availability Set, Azure guarantees to spread them across fault and update domains. By default, Azure will assign three fault domains and five update domains (which can be increased to a maximum of 20) to the Availability Set.
Related Question AnswersWhat is an update domain?
Update domains. An update domain is a logical group of underlying hardware that can undergo maintenance or be rebooted at the same time. As you create VMs within an availability set, the Azure platform automatically distributes your VMs across these update domains.What is fault tolerance in networking?
Fault tolerance is the property that enables a system to continue operating properly in the event of the failure of (or one or more faults within) some of its components.What is an availability set?
Availability set overview An Availability Set is a logical grouping capability for isolating VM resources from each other when they're deployed. Azure makes sure that the VMs you place within an Availability Set run across multiple physical servers, compute racks, storage units, and network switches.What is azure fault domain?
Fault Domains. When you put VMs in to an availability set, Azure guarantees to spread them across Fault Domains and Update Domains. A Fault Domain (FD) is essentially a rack of servers. It consumes subsystems like network, power, cooling etc.What is a virtual machine scale set?
A virtual machine scale set allows you to deploy and manage a set of identical, auto-scaling virtual machines. You can scale the number of VMs in the scale set manually, or define rules to autoscale based on resource usage like CPU, memory demand, or network traffic.What is fault tolerance in Azure?
Database Fault-Tolerance in a Nutshell If any component fails on the primary replica, Windows Azure SQL Database detects the failure and fails over to the secondary replica. Other than the loss of an entire data center all other failures are mitigated by the service.What is high availability set in Azure?
High availability: Refers to a set of technologies that minimize IT disruptions by providing business continuity of IT services through redundant, fault-tolerant, or failover-protected components inside the same data center. In our case, the data center resides within one Azure region.How does VMware vSAN work?
VMware vSAN uses a software-defined approach that creates shared storage for virtual machines. It virtualizes the local physical storage resources of ESXi hosts and turns them into pools of storage that can be divided and assigned to virtual machines and applications according to their quality-of-service requirements.What is a vSAN cluster?
A vSAN cluster includes the following characteristics: You can use a single vCenter Server to manage more than one vSAN cluster. vSAN consumes all devices, including flash cache and capacity devices, and does not share devices with other features. vSAN clusters can include hosts with or without capacity devices.What is vSAN Datastore?
OSFS (Object Store File System) enables VMFS volumes from each ESXi host to be mounted as a single datastore. Data on a VSAN datastore is stored in the form of data containers called objects, which are logical volumes that have their data distributed across the entire cluster.Does nutanix use VSAN?
Nutanix operating in the user space we do have a VM called our CVM that is the storage controller running on each node. VSAN being embedded in the kernel doesn't use VM's for base functionality. To effectively manage VSAN you need to add some additional VMs, they're optional but do come installed with EVO:RAIL.What is RAID 5/6 erasure coding?
You can use RAID 5 or RAID 6 erasure coding to protect against data loss and increase storage efficiency. RAID 5 or RAID 6 erasure coding enables Virtual SAN to tolerate the failure of up to two capacity devices in the datastore. You can configure RAID 5 on all-flash clusters with four or more fault domains.How can I get vSAN license?
Procedure- Navigate to your vSAN cluster.
- Click the Configure tab. Option. Description. vSphere Client. Right-click your vSAN cluster, and choose menu Assign License. Select a licensing option. Select an existing license and click OK. vSphere Web Client. Under Configuration, select Licensing, and click Assign License.
