A batten is generally a strip of timber (although it can also be steel or plastic) which is used in the construction of buildings. They are typically used as spacers to raise the surface of a material, or as a secondary framework onto which a surface may be fixed..
Beside this, what are wood battens?
A batten is most commonly a strip of solid material, historically wood but can also be of plastic, metal, or fiberglass. Battens are variously used in construction, sailing, and other fields. In the lighting industry, battens refer to linear light fittings.
Secondly, what are battens on a house? Board and batten, or board-and-batten siding, describes a type of exterior siding or interior paneling that has alternating wide boards and narrow wooden strips, called "battens." The boards are usually (but not always) 1 foot wide. Even today, this type of siding on a house exudes a comfortable informality.
Keeping this in view, what size are timber roof battens?
Timber battens for metal roofs come in a range of sizes: 75 x 45. 90 x 35. 90 x 45.
What is the difference between purlins and battens?
But a “purlin” is applied directly onto the roof rafters, running perpendicular between them, while a “batten” is nailed to roof sheathing or applied over an existing roof for installation of a new roof.
Related Question Answers
What kind of wood is used for board and batten?
Some of the most common types of wood used for board and batten siding are pine, plywood, fir, cedar, redwood and white oak. Besides appearance, most homeowners choose their wood based on its price, durability and maintenance. Sadly, the wood is not the only siding element that needs shielding from the elements.How do you install roof battens?
How to install roofing battens - 4 simple steps - Start with the underlay. Roofing underlays provide insulation and an extra waterproof barrier to prevent ingress of any water that manages to get under the roof covering.
- Choose your battens. Next, it's time to select the battens.
- Check size and spacing of battens.
- Fix the battens into place.
What do you use for battens?
Cedar is a good lumber choice because it is soft; harder wood, such as pressure-treated pine, will not seal as well and is more likely to crack. Board-and-batten can be installed onto solid plywood or OSB sheathing. If your sheathing is not solid, you will need to first attach horizontal furring strips.Why battens are provided?
The main difference is in the purpose for which they are provided-Lacing flats carry no force but their sole purpose is to prevent buckling of column while Battens along with to check buckling plays a role in force transfer. Lacing flats are inclined while battens are the horizontal plates.Why is it called board and batten?
Where the boards fit together, they would nail a small wooded strip of wood a couple inches wide, called a 'batten' over the cracks to make it air tight. Hence the name 'board and batten'. It was used by farmers all across the U.S. to build their barns for generations and is still sometimes called 'Barn Siding".Do roof battens need to be treated?
5 – Grading process – Roofing battens must be pre graded before they get to site, this can be done visually or by a machine. 7 – Treatment – Roofing battens should be preservative treated to Use Class 2 in accordance with BS 8417.What is led Batten?
LED battens with integrated tubes are the modern equivalent of fluorescent tube fixtures, but with all of the benefits that LEDs offer. The Integrated LED batten is a lighting fixture with one or two LED tubes built in. They are also inexpensive (costing less than a typical fluorescent fixture and tube).What size should roof battens be?
Dimensional tolerances As already stated, BS 5534:2014 battens come in two basic dimensions: 25 x 38mm and 25 x 50mm. The standards also state an allowed tolerance of +/- 3mm on the width, and a tolerance on the thickness of -0/+3mm.How far can roof battens span?

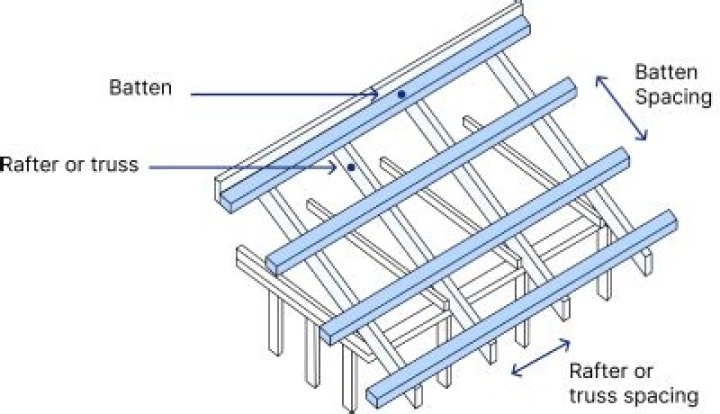

Roof Batten - maximum spans and spacing (non-cyclonic) Maximum span - 1200mm Maximum spacing - Internal Spans - 1200mm End spans (Up to 900mm Span) - 900mm Note: the batten spacing must not exceed the manufacturers maximum recommended support spacing for the roof cladding material.How far apart should battens be?
Typically, batten are spaced anywhere from 12” to 24” apart. I think it looks best to space them as close to 18” as possible, but that's just a personal preference.What size timber do I need for a flat roof?
Wherever possible joists should span the shortest distance. Common joists sizes are 200 x 50mm, 175 x 50mm, and 150 x 50mm. The joists will normally be placed at 400mm centres but no more than 600mm centres.What's the difference between Truss and Rafter?
Trusses and rafters are both assembled ahead of being installed onto the roof. Trusses are assembled in a factory using pre-engineered structures and joints. On the other hand, rafters are assembled at the construction site. Rafters contain two main outer beams which support the roof structure.What is roof load width?
50. Roof Load Width (RLW) 51. RLW - Roof Load Width RLW is the width of roof that contributes roof load to a supporting member – it is used as an input to Span Tables for • Floor bearers • Wall studs • Lintels • Ridge or intermediate beams • Verandah beams. 52.How far apart should roof trusses be?
The trusses should be a little longer than the exact width to allow for overhang, and you will need sufficient trusses to mount across the length. Most are spaced between 18-26 inches apart. Once you've calculated the number of trusses you will need, you should purchase the lumber.Is board and batten trendy?
With the modern farmhouse and rustic-chic looks still going strong, it's no surprise that board and batten is being used more and more, though this siding look isn't limited to farmhouse or rustic homes. In fact, it's surprisingly versatile.Can you use plywood for board and batten siding?
Re: Board and batten siding Other than that, no problems; but plywood as siding does not paint all that well, unless you use an MDO type, which has a paint-friendly coating of resin-impregnated paper on the surface.Should I caulk board and batten siding?
Board and batten is a traditional siding that works well if you're on a budget and live in rustic surroundings. You'll probably finish the siding, so the caulk should be paintable. It should also stay flexible enough to compensate for wood movements.What is reverse board and batten?
Board and Batten is siding that is created by using real wood including cedar, redwood, pine, white oak, engineered wood and many others. The batten is placed over the board's seams. On the contrary, reverse board and batten gets its name because it is literally the opposite of board and batten.How do you board and batten exterior?
Install wide vertical boards (typically 6″ to 12″) – space 1/2″ to 1″ between boards to allow natural movement between boards and allow room for the batten fasteners to pass between boards. Install overlying battens (typically 2″ to 4″) – battens cover the gaps between the boards and hold the edges of the boards down.
