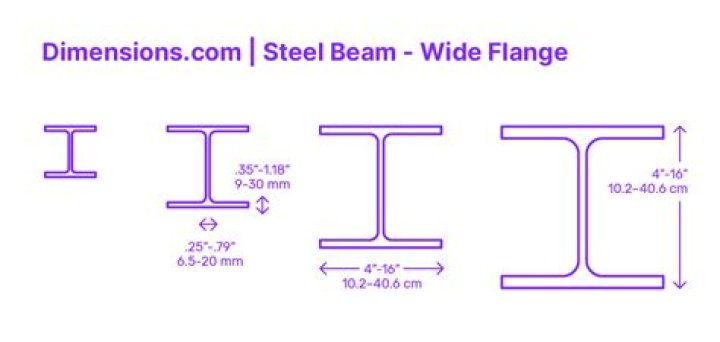

What are the dimensions of a steel beam?

Dimensions of Steel Beams IPE NEN-EN 10025-1/2

IPE	Height H	Width W
240	240	120
270	270	135
300	300	150
330	330	160

What are the dimensions of steel?

Steel Dimensions Table

Shape	Depth (inch)	Web Thickness (inch)
W 44 X 335	44	1.02
W 44 X 290	43.6	0.87
W 44 x 262	43.3	0.79
W 44 X 230	42.9	0.71

How do you size a structural steel beam?

To calculate the necessary depth of a beam, divide the span (in inches) by 20. For example, a 25′ span would be 25×12 / 20 = 15”. The width of this beam would be between 1/3 and ½ the depth.

What is the thickness of beam?

2. Minimum Thickness of Beams

Beam span	Beam type	Span/depth ratio
Up to 10m	Simply supported	20
Cantilever	7
Continuous	26
Greater than 10m	Simply supported	20*10/span

How thick are steel beams?

In the United States, steel I-beams are commonly specified using the depth and weight of the beam. For example, a “W10x22” beam is approximately 10 in (25 cm) in depth (nominal height of the I-beam from the outer face of one flange to the outer face of the other flange) and weighs 22 lb/ft (33 kg/m).

How wide is an I beam?

Dimensions of American Wide Flange Beams ASTM A6 (or W-Beams) – Imperial units.

Designation Imperial (in x lb/ft)	Depth h (in)	Web Thickness tw (in)
W 27 x 178	27.8	0.725
W 27 x 161	27.6	0.660
W 27 x 146	27.4	0.605
