How do you use earth ground tester?

To test soil resistivity, connect the ground tester as shown in Fig. 1. Four earth ground stakes are positioned in the soil in a straight line, equidistant from one another. The distance between earth ground stakes should be at least three times greater than the stake depth.

.

Similarly, how does earth ground tester work?

The earth tester consists the potential coil which is directly connected to the DC generator. The potential coil is placed between the permanent magnet. The coil is connected to the pointer, and the pointer is fixed on the calibrated scale. The pointer indicates the magnitude of the earth resistance.

Beside above, what happens if ground wire is not connected? In the absence of the ground wire, shock hazard conditions will often not cause the breaker to trip unless the circuit has a ground fault interrupter in it. If the case is grounded, a high current should flow in the appliance ground wire and trip the breaker.

Hereof, how do you check an earth ground with a multimeter?

Method 2 Checking Earthing with a Multimeter

1. Set a multimeter to measure AC voltage.
2. Plug the red and black leads into the matching ports on the multimeter.
3. Take a reading while the leads are in the live and neutral ports of an outlet.
4. Check the voltage when the leads are inserted to the live and earthing ports.

Who is responsible for earthing a property?

The property owner is responsible for ensuring they have internal earthing to protect their home and appliances inside their homes.

Related Question Answers

How many ohms are required for proper earthing?

5 ohms

What is the acceptable earth resistance value?

Ideally a ground should be of zero ohms resistance. There is not one standard ground resistance threshold that is recognized by all agencies. However, the NFPA and IEEE have recom- mended a ground resistance value of 5.0 ohms or less.

How do I check for earth leakage in my home wiring?

Checking the Earth Leakage Breaker

1. Press the operation switch to turn off the power.
2. Turn off the main power.
3. Using a ballpoint pen or similar pointed object, press in the earth leakage breaker's test button.
4. Check that the earth leakage breaker moves to the Off position.
5. Return the earth leakage breaker to the On position.
6. Turn on the main power.

How can you tell if a wire is neutral or earth?

The white wire is the "neutral" wire, which takes any unused electricity and current and sends them back to the breaker panel. The plain (or it can sometimes be green) wire is the "ground" wire, which will take electricity back to the breaker panel, then outside to a rod that's buried in the ground.

How can we solve earthing problem in home?

Use a multimeter to test your electrical circuits.

1. Shut off the main electrical power.
2. Find the grounding rod driven into the ground.
3. Check the ground connection clamp.
4. Check the ground wire running to the copper or galvanized water service inside the house.
5. Turn on the electricity at the main panel.

How can you tell if a house is grounded?

How to Tell If Your House Wiring Is Grounded

1. Look at the outlets in your home.
2. Insert the circuit tester's red probe into the smaller outlet slot.
3. Insert the black probe into the larger slot in the outlet.
4. Look at the indicator light.
5. Repeat Steps 1 through 4 in all the outlets of your home.

How many types of earthing are there?

five types

Why is Earth pit required?

Nowadays, earth-pits are the preferred method for earthing, especially for electrical networks. Electricity always follows the path of least resistance, and to divert the maximum current away from a circuit, earthing pits are designed to reduce ground resistance, ideally to 1 ohm.

In which principle the earth resistance tester does work?

The principle of this measurement is fall of potential method. The resistance area of an earth electrode is the area of soil around the electrode within which a voltage gradient measurable with commercial instruments exists. Shows the arrangement for the measurement.

What is difference between earth tester and Megger?

Difference between megger and earth tester? Megger is an instrument which in addition to measurement of high resistance can be used to test the quality of the insulation at or above its operating voltage. While earth tester has earth electrodes which are used to measure eathpit resistance & it is measured in ohm.

How do you measure earth continuity?

The earth continuity test passes a test current along the earth cable from the pin of the plug to the contact point on the appliance. The appliance tester then measures the resistance of that connection. If the earth connection is damaged, non-existent or corroded then the earth resistance reading will increase.

How much voltage is between Earth and neutral?

Voltage Measurement between Neutral to Ground: A rule-of-thumb used by many in the industry is that Neutral to ground voltage of 2V or less at the receptacle is okay, while a few volts or more indicates overloading; 5V is seen as the upper limit.

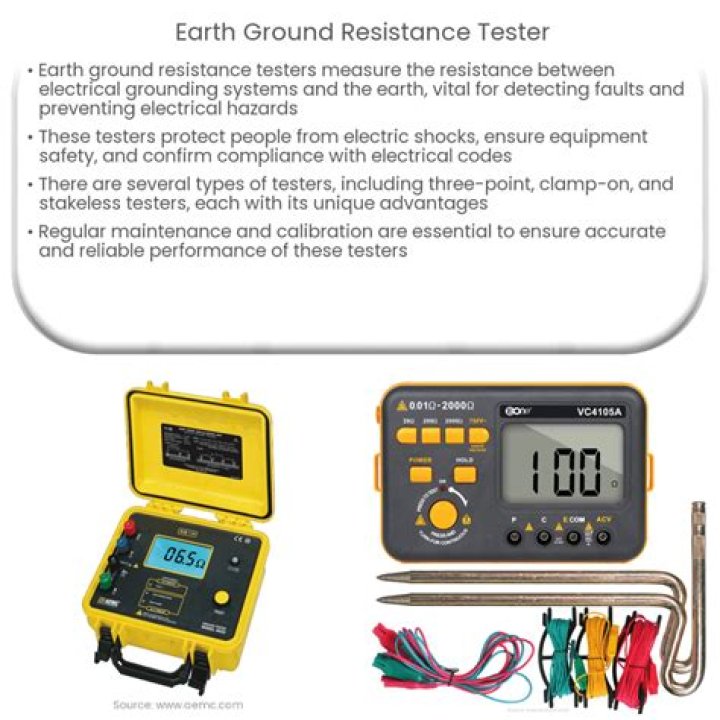

What is an earth ground tester?

Earth Ground Testers. Test your facilities grounded electrical system to make sure they can withstand a lightning strike or utility overvoltage. These testers are accurate, safe and easy to use. Find basic to advanced testers in this category.

How can we increase earth resistance?

3 good ways to improve earth electrode resistance

1. Lengthen the earth electrode in the earth.
2. Use multiple rods.
3. Treat the soil.

How do you make an earthing pit?

Method for Construction of Earthing Pit

1. Excavation on earth for a normal earth Pit size is 1.5M X 1.5M X 3.0 M.
2. Use 500 mm X 500 mm X 10 mm GI Plate or Bigger Size for more Contact of Earth and reduce Earth Resistance.
3. Make a mixture of Wood Coal Powder Salt & Sand all in equal part.
