How do you make multiple bends in sheet metal?

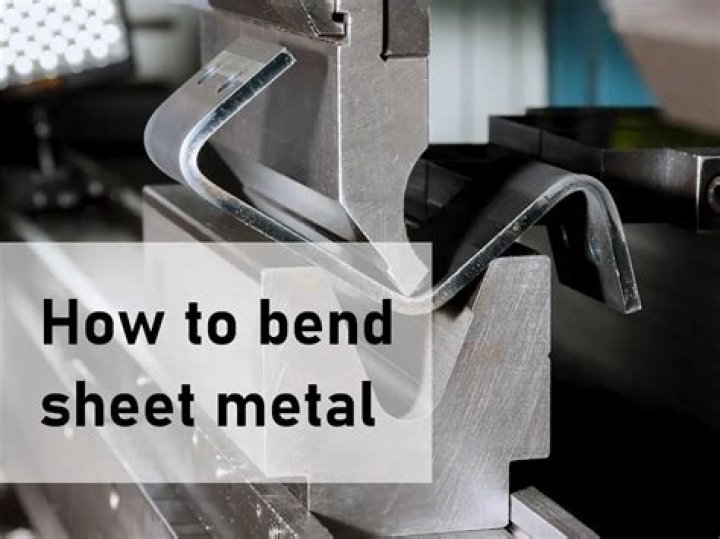

A brake is a metalworking machine that allows the bending of sheet metal. A cornice brake only allows for simple bends and creases, while a box-and-pan brake also allows one to form box and pan shapes. It is also known as a bending machine or bending brake or in Britain as a sheet metal folder or just a folder.

.

Moreover, how do you calculate sheet metal bends?

All formulas use the following keys:

1. Lf = flat length of the sheet.
2. BA = bend allowance.
3. BD = bend deduction.
4. R = inside bend radius.
5. K = K-factor, which is t / T.
6. T = material thickness.
7. t = distance from inside face to the neutral line.
8. A = bend angle in degrees (the angle through which the material is bent)

Secondly, what is the easiest metal to bend? Thinner aluminium bends easier, just like steel, but you also want structure (so it holds its shape).

In this regard, is sheet metal easy to bend?

Bending. Bending sheet metal can be tricky, but with the right tool it's easy. Using the edge of your workbench, a length of wood, two clamps, and a mallet, you can fashion a rudimentary bending brake. Mark a bend line and place the sheet metal on the edge of your bench.

Can Korra bend metal?

Lightning bending, metal bending, blood bending, are all sub-sects of fire, earth and water bending (respectively), and the Avatar is a master of all four. There is no bending ability that anyone could ever devise that the Avatar could not learn, with proper teaching and study.

Related Question Answers

How thick can sheet metal bend?

Know what governs the minimum bend radius While sheet metal gauges run from 0.005 to 0.249 inch thick, aluminum and steel plate thicknesses start at 0.250 in. and go all the way up to 13 in. or even more.

What is the thickness of 10 gauge steel?

For other materials, such as aluminum and brass, the thicknesses will be different. Thus, a 10 gauge steel sheet which has a thickness of 0.1345 inches will weigh 41.82*0.1345 = 5.625 pounds per square foot.

How is sheet metal bent?

Bending is a metal forming process in which a force is applied to a piece of sheet metal, causing it to bend at an angle and form the desired shape. A bending operation causes deformation along one axis, but a sequence of several different operations can be performed to create a complex part.

How do you heat metal to bend it?

You can make simple bends in iron and steel using nothing more than a torch to heat and soften the metal. With a soapstone pencil, mark a line across the stock to indicate the center of the bend. Clamp the stock in a vise. Light the torch and adjust it to a neutral flame.

How do you make sheet metal?

Sheet metal is made by taking a large cast ingot and rolling it into a long ribbon of the desired thickness. This long, flat piece of metal is then rolled into a coil and sent directly or cut into sheets before being sent to a machine shop.

How do you measure sheet metal development?

What is the formula for the development length on sheet metal? k- factor is used to calculate bend allowance or Deduction in sheet metal parts. Development Length = Flange-1 Length + Flange-2 Length- bend deduction. Value of k factor can be calculated using reverse engineering approach.

What is the K factor in sheet metal?

The K-Factor in sheet metal working is the ratio of the neutral axis to the material thickness. When metal is bent the top section is going to undergo compression and the bottom section will be stretched. The K-Factor is the ratio of the Neutral Axis' Offset (t) and the Material Thickness (MT).

What is the formula for bend allowance?

BA = [A x (π/180) (r + (K x T))]. The bend angle A in degrees, inside bend radius R in m, K-factor K for different types of materials & material thickness T in m are the key elements of this calculation.

What is Y factor in sheet metal?

Y factor and K factor represent part constants used in formulas to calculate the developed length of flat sheet metal required to make a bend of a specific radius and angle in a design. Y factor and K factor are defined by the location of the sheet metal material's neutral bend line with respect to the thickness.

What is a forming?

Definition of 'forming' Forming is a process in which the shape of a partly finished product, for example sheet metal, is changed using plastic deformation. Forming is a process in which the shape of a partly finished product, for example sheet metal, is changed using plastic deformation.

What is a joggle in sheet metal?

A joggle is an offset formed to provide for an -overlap of a sheet or angle which is projecting in the same plane. The inside joggle radii should be approximately the same as used for straight bending.

What is bending allowance in sheet metal?

When the sheet metal is put through the process of bending the metal around the bend is deformed and stretched. As this happens you gain a small amount of total length in your part. The Bend Allowance is defined as the material you will add to the actual leg lengths of the part in order to develop a flat pattern.

What is K factor bend allowance?

The K factor is defined as the ratio between the material thickness (T) and the neutral fibre axis (t), i.e. the part of the material that bends without being compressed nor elongated. Bend allowance is a fundamental parameter to calculate sheet elongation.

How do you stiffen metal?

To harden steel, start by heating the metal directly with a blow torch until it turns a cherry red color. Then, use a pair of tongs to carry the steel to a container filled with water or vegetable, and submerge the hot metal in the liquid.

How do you stiffen sheet metal?

The nature of sheet metal allows stiffening without adding additional material and weight to the finished piece. The process of stiffening sheet metal--known as cross braking--places a small bend across flat sections of metal. Each bend reduces the flat area of each side, increasing its overall strength.

Can you cut sheet metal with a Dremel?

The Dremel Multi-Tool, also known as the MultiPro, is a cordless high-speed rotary tool that can grind, cut and drill. However, its heavy-duty emery cutoff wheel or 1-1/4 inch cutoff wheel can cut thin sheet metal with ease.

How do you cut sheet metal straight?

Method 1 Cutting Straight Lines with an Electric Saw

1. Wax your saw blade before cutting sheet metal.
2. Tape the sheet metal and secure it in place.
3. Press the saw blade against the sheet metal.
4. Begin your stroke in the metal.
5. Continue making the stroke and pull your blade back at the end.

Does bending metal weaken it?

Repeated bending weakens it. If the material is not ductile, (cast iron, for example) bending may cause it to break. The percentage of carbon that is added decides how tolerant the steel will be to bending. This holds true for structural steel used in construction.

What kind of metal is bendable?

Nitinol is by far the most flexible metal* As the stress-strain curve below shows it can reach a strain of nearly 8% and still recover its original form. Few other alloys can exceed a strain of 1% (beta-C titanium, 7068 aluminum, extra-hard or hyten 304 stainless steel wire).
