How do you adjust timing?

To adjust your timing, all you need to do is turn the distributor housing one direction or the other, depending on whether or not you want to advance or move back the timing. If the rotor turns clockwise, you'll advance the timing by rotating the distributor counterclockwise, and vice versa.

.

Also, how do you adjust timing without a timing light?

Turn the engine to the timing mark you want: be sure the rotor is pointing at the #1 plug wire connector (inside distributor) if it's not, turn the engine until the mark comes back; connect a test light between ground and the coil negative terminal; rotate the distributor clockwise until the light goes out; then turn

Secondly, what causes ignition timing to be off? Symptoms of incorrect ignition timing are poor fuel economy, sluggish acceleration, hard starting, backfiring, or "pinging" or "spark knock". Too little spark advance will cause low power, bad gas mileage, backfiring, and poor performance. Pre-ignition can be caused by too much spark advance or too low octane gas.

Similarly, it is asked, what are the symptoms of timing being off?

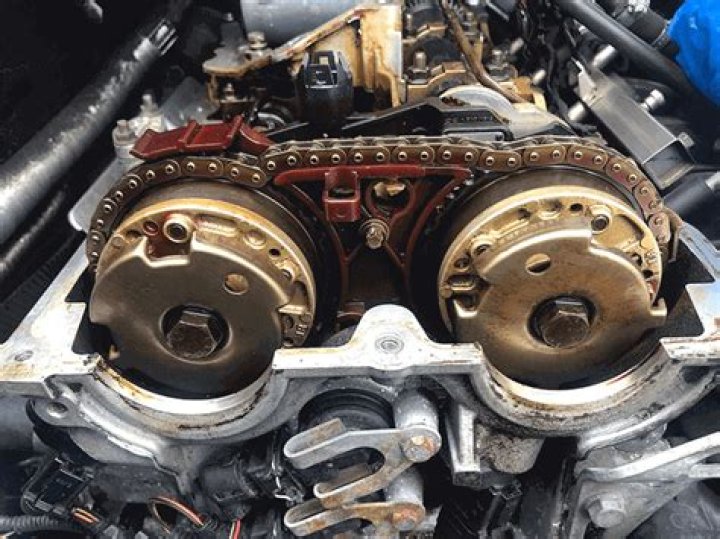

Check out these symptoms of a bad or failing timing belt

• Ticking noise coming from the engine. The timing belt is attached by way of a series of pulleys to the engine's crank and cam shaft.
• Engine won't turn over.
• Engine misfires.
• Oil leaking from in front of the motor.

How much does it cost to get timing adjusted?

The average cost for an ignition timing adjust is between $55 and $71. Labor costs are estimated between $55 and $71. Estimate does not include taxes and fees. When would you like to drop off your car?

Related Question Answers

How can I get TDC without timing marks?

How to Find TDC Without a Timing Tab

1. Park the vehicle on a level, paved surface and set the emergency brake.
2. Use a ratchet and spark plug socket to remove the spark plug from the number one cylinder.
3. Place a ratchet and socket on the large bolt in the center of the crankshaft.
4. Insert a plastic straw about two inches into the spark plug hole.

Which way is advance on a distributor?

A: Chevy distributors rotate clockwise, so you'd want to turn the distributor counterclockwise to advance the timing. Advancing timing to aid in cold starting will only help if the timing was retarded to begin with.

Will a car start if the timing is off?

If the timing is off, damage can occur. In some engines, called “interference engines,” the consequences can be especially bad. You could end up having to have your engine rebuilt, or even replaced. If your cam timing is off, chances are you'll know because your car will not be running well, if it's running at all.

Can you set timing by ear?

Setting by ear at idle only works for a start. When the advance comes in, you may need more or less timing. If it pings on accelleration, retard, if it bogs, advance.

Does advancing timing increase idle?

Advance timing, and response increases, easier to start, more power(torque) off idle. Some engines use the vacuum advance to advance timing at idle. This allows the engine to be able to start without kicking back against the starter since the base timing is actually retarded slightly.

What happens if your distributor timing is off?

If ignition timing is too far advanced, it will cause the fuel-and-air mixture to ignite too early in the combustion cycle. This can cause the amount of heat generated by the combustion process to increase and lead to overheating of the engine.

How does retarding timing affect an engine?

Retarding the timing on these engines compensates for the denser fuel-air mixtures by firing the plugs later in the compression cycle. This prevents premature combustion and allows the engine to run at peak performance without destroying itself in the process.

What happens if timing is too advanced?

If ignition timing is too far advanced, it will cause the fuel-and-air mixture to ignite too early in the combustion cycle. This can cause the amount of heat generated by the combustion process to increase and lead to overheating of the engine.

What rpm do you set timing at?

I like to set them up at about 3500 rpm for a typical street car. On the street with street gas you have to concern yourself with the worst case scenario which is heavy throttle detonation. You don't gain anything with the timing fully advanced at 2000 rpm, but the engine will be closer to detonation under heavy load.

What does advancing the timing do?

Advancing the timing means the plug fires earlier in the compression stroke (farther from TDC). Advance is required because the air/fuel mixture does not burn instantly. It takes time for the flame to ignite the all the mixture. However, if the timing is advanced too far, it will cause an Engine Knock.

Can too much timing cause overheating?

If the ignition timing is incorrect, not only will the engine run too hot but it won�t have the power it should. An incorrect air/fuel mixture can also cause an overheating problem; a lean air/fuel mixture will cause an engine to create more heat than a rich air/fuel mixture.

What should spark advance be at idle?

In addition, the WSM says spark advance should be between 6 to 18 degrees BTDC at idle.

Does advancing timing make more power?

The engine speed operating range affects where the timing is the best. Increasing the timing advance raises the high-end power, reducing the low-end. Decreasing the timing advance raises low-end power, reducing the high-end.

What controls the ignition timing?

The ignition timing affects many variables including engine longevity, fuel economy, and engine power. Modern engines that are controlled in real time by an engine control unit use a computer to control the timing throughout the engine's RPM and load range.

Does cam timing affect ignition timing?

The complete answer is; Wherever your ignition timing is normally set at. Cam timing is VALVE timing. Ignition timing is SPARK timing. Just because they share the same word of "timing" doesn't mean they have anything to do with either other.

How does ignition timing affect performance?

Retarding the ignition timing means that the spark has less time to become energised Before Top Dead Centre (BTDC), and so the force with which the piston comes back down after it has reached TDC is reduced. This means that you will lose performance, and nobody wants that to happen (except the cops).

Why is ignition timing important?

The timing of the spark is important, and the timing can either be advanced or retarded depending on conditions. The time that the fuel takes to burn is roughly constant. But the speed of the pistons increases as the engine speed increases. This means that the faster the engine goes, the earlier the spark has to occur.

What are the signs of a bad distributor?

Bad Distributor Cap Symptoms

• Yelling Noises. Squealing noise from the car is the first sign of a bad distributor cap.
• Difficulty in Starting. Some of the bad distributor cap symptoms.
• Shaking. You might have experienced extreme shaking or vibration when starting or shifting the gears.
• Stalling and Backfire.
• Difficulty Turning Over.

How do you test a distributor?

Pull a plug wire off the distributor test each one. A screwdriver can be used to check the arc when the ignition is turned. Put the metal part of a screwdriver against the metal of the plug wire. Place the metal screwdriver near the electrode of the distributor.
